Introduction£º

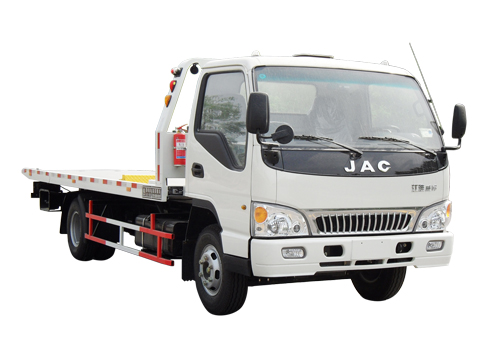

1.It is an ideal wrecker truck to remove the accident vehicle, safe and reliable, no hurt to the vehicle.
2. The truck is equipped with a telescopic, tiltable platform with automatic loading or disloading,raising, traction, as well as transportation.
3. The hydraulic is advacedly designed and the pipes layout is good, easy to maintenance.
4. The chief structure parts are made of high strength steel by bending and welding, and treated through pickling and phosphating to gurantee the safe and reliable.
|
Type |
SMJ5061TQZAC3 |
|
Chassis type |
HFC1061K93 |
|
Overall dimensions (mm) |
¡¡7720¡Á2280¡Á2400£¬2600 |
|
Total weight (kg) |
6125¡¡ |
|
Kerb weight (kg) |
4570¡¡ |
|
Tires |
8.25-16 (8.25R16, 7050-16, 7.50R16.) |
|
Motor type |
ISDe140 30 |
|
Hp/kW |
140/103 |
|
Raising weight |
Min. raising boom (kg) |
¡Ý1200 |
|
Max. raising boom (kg) |
¡Ý800 |
|
Lift and traction capacity (kg) |
3050 |
|
Max. flexible stroke of platform (mm) |
2700 |
|
Carriage dimensions (mm) |
5505¡Á2180 |
|
Raising boom telescopic stroke£¨mm£© |
1340 |
|
Max. pulling force of winch£¨N£© |
40000 |
|
Min. tilt angle of platform£¨¡ã£© |
8 |
|
Max. loading capacity of platform£¨kg£© |
2100 |
|
Nominal system pressure£¨Mpa£© |
16 |
