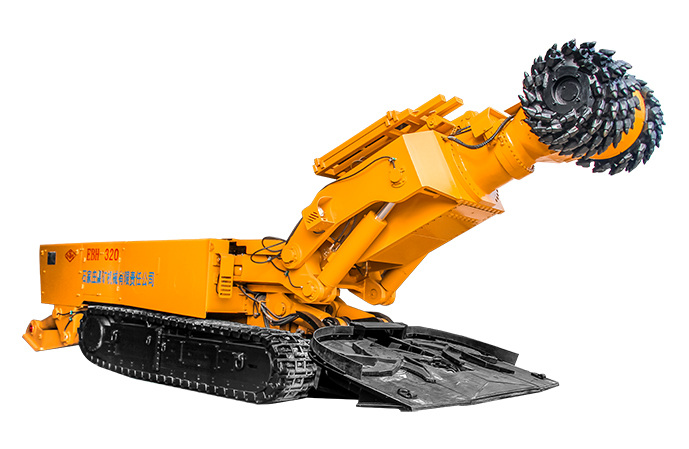

The EBH320 rock roadheader is a large-scale integrated excavation machine that combines cutting, loading, and mobility. It is designed for cutting underground tunnels of any cross-section and can also be used in
tunnel construction projects for highways, railways, and water conservancy.
¡ö Utilizes key technologies from the national ¡°863¡± program.
¡ö The entire machine can be operated using either hydraulic pilot proportional control or fully wireless remote control.
¡ö The hydraulic system uses a variable displacement system, which is highly efficient, generates minimal heat, and is environmentally friendly.
¡ö Equipped with internal and external spray systems for excellent dust suppression.
¡ö Major hydraulic components use imported parts, ensuring stable performance and high efficiency.
¡ö Features a unique loading and unloading system, reducing the incidence of accidents in the loading mechanism during coal cutting, improving loading efficiency, and enhancing loading capacity.
¡ö The cutting head is of the horizontal shaft type, with high single-blade force, reasonably arranged cutting bits, strong rock-breaking and fault-crossing capabilities, minimal cutting vibration, and good operational stability. The cutting arm's rotation and lifting can be coordinated, enabling arc-shaped cutting.
