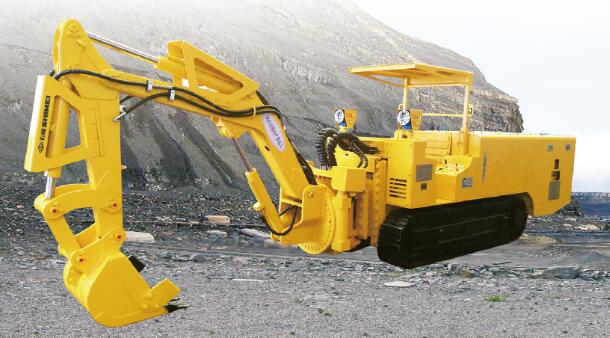

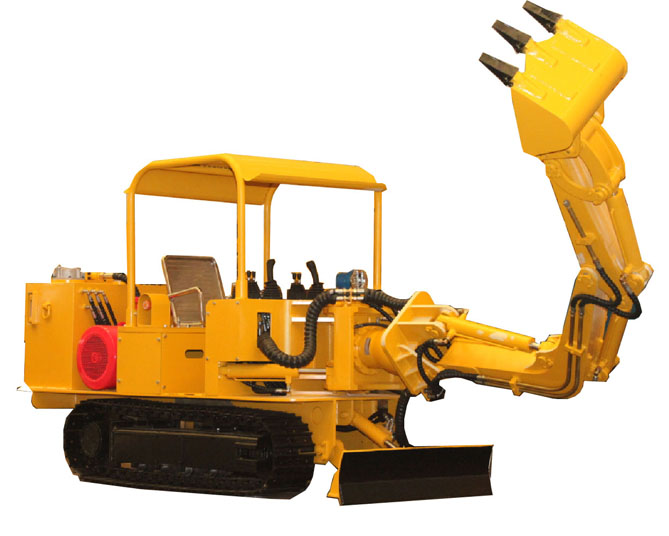

WPZ-45/400 underground roadway repair machine
The old roadway or the big section roadway need repair to prevent roof fall or rib spalling or floor heave from accident.
The agile repaire machine with multi functions is necessary.

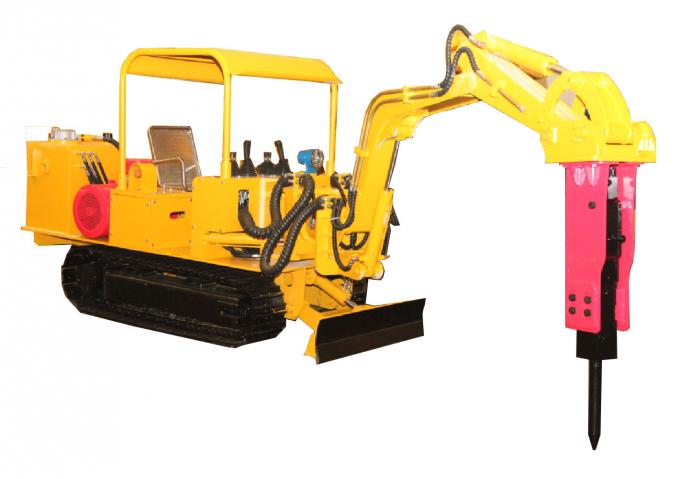

WPZ-45/400 can make the breaking, digging, loading, smoothing as well as lifting.
The working boom can move up and down and rotation to reach different place in the roadway.
|
Model |
WPZ-45/400 |
WPZ-45/400£¨heavy duty£© |
|
Excavation width (mm) |
5000 |
5000 |
|
Excavation height (mm) |
4000 |
4200 |
|
Excavation depth (mm) |
1200 |
1300 |
|
Loading height (mm) |
2200 |
2600 |
|
Hammer impact energy (j) |
400 |
400 |
|
Ground clearance (mm) |
260 |
260 |
|
Inclination (¡ã) |
18 |
18 |
|
Motor power (kW) |
45 |
45 |
|
Travelling speed (m/s) |
0~24 |
0~26 |
|
Average ground pressure (MPa) |
£¼0.1 |
£¼0.1 |
|
Weight (kg) |
6500 |
9000 |
|
Overall dimensions (mm) |
6500¡Á1200¡Á1300 |
68500¡Á1200¡Á1500 |
