Introduction

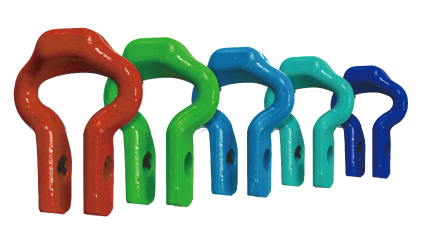

It is matched with the round lind chain to be applied to the scraper conveyor or reversing loader.
Specification
|
Main size (mm) |
Mechanical parameter (kn) |
|
specification |
section dia. |
pitch |
Max. outer width |
Hole dia. |
specification |
Grade B |
Grade C |
|
Test load |
Min. broken load |
Test load |
Min. broken load |
|
14¡Á50 |
16 |
50 |
81 |
17 |
14¡Á50 |
136 |
170 |
180 |
225 |
|
18¡Á64 |
20 |
64 |
103 |
21 |
18¡Á64 |
232 |
290 |
300 |
370 |
|
22¡Á86 |
23 |
86 |
138 |
25 |
22¡Á86 |
/ |
/ |
415 |
550 |
|
26¡Á92 |
27 |
92 |
148 |
28 |
26¡Á92 |
/ |
/ |
575 |
765 |
